Name: 4.061 Combination roller bearing Combined Bearings
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: 4.061
Price: 21.00 USD
Availability: InStock

Главная страница Продукция Тип подшипник хомута ролика следа

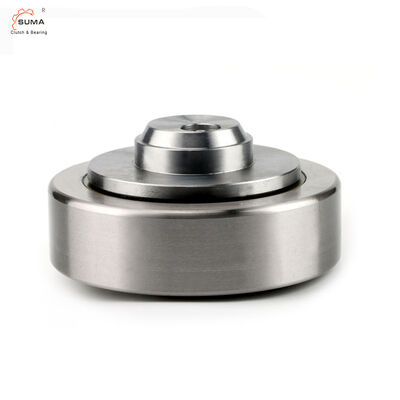

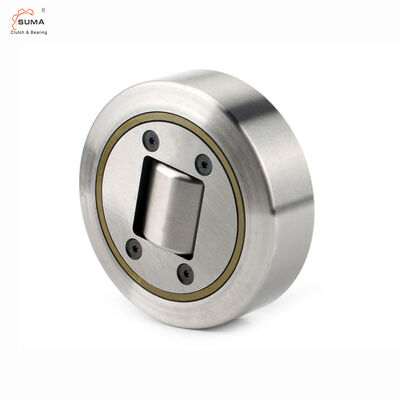

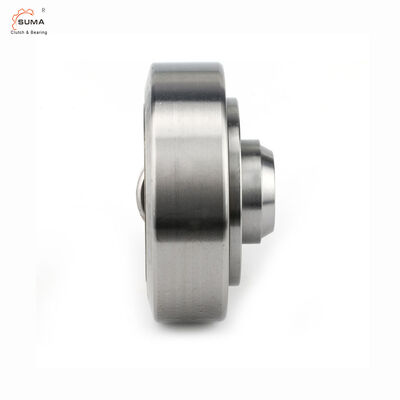

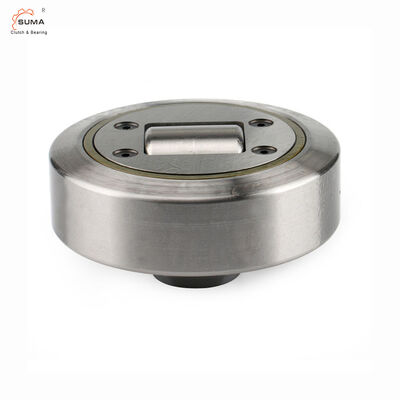

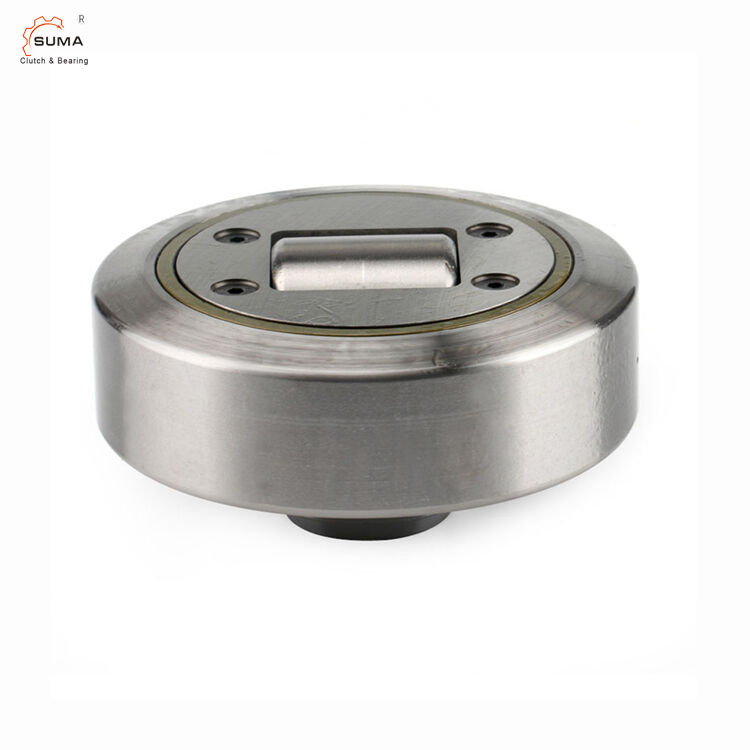

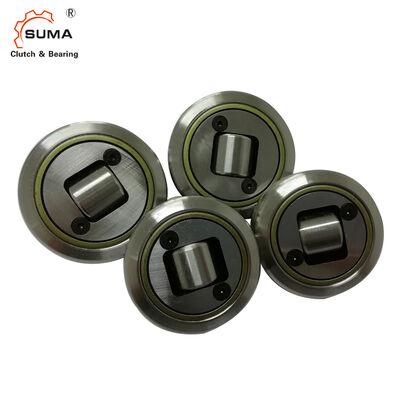

4.061 Combination roller bearing Combined Bearings

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	SUMA
Сертификация:	ISO SGS
Номер модели:	4.061

Оплата и доставка Условия:

Количество мин заказа:	1
Цена:	USD20-USD23 PER PIECE
Упаковывая детали:	Картонная коробка
Время доставки:	2-5 дней
Условия оплаты:	L/C, D/A, D/P, T/T, Western Union, Paypal
Поставка способности:	100000 ПК в месяц

контакт

Подробное описание продукта

Название продукта:	Комбинированный роликовый подшипник	Материал:	Подшипник стальной GCR15
РАЗМЕР:	509032 мм	Дин. Грузоподъемность:	10000
Ста. Грузоподъемность:	161000	Упаковка:	Пакет крена + коробка коробки
Гарантия:	6 месяцев	OEM:	Принимать

4.061 Combination roller bearing Combined Bearings

Description of Combined Roller Bearing for Forklift

The Combined Roller Bearing is composed of two main rollers, a side roller and a shaft head, which are installed in two different directions to reduce space and reduce manufacturing costs. The radial and axial direction bearing capacity is relatively large, and the accessories are highly replaceable. The adjustable combined roller bearing can adjust the position of the mandrel by adjusting the eccentric outer hexagon or the eccentric valve to achieve the purpose of adjusting the axial dimension of the side roller.

Composite roller bearings are mainly used in: forklifts, stackers, metallurgical industry, container front forks, cranes and other large lifting equipment and material lifting equipment.

Catalogue of Combined Roller Bearings for Forklift

4.061 Combination roller bearing Combined Bearings 0

Model No.	D mm.	T mm.	d -0.05 mm.	H mm.	h mm.	B mm.	A mm.	S mm.	r mm.	C KN	COKN	COAKN	r/pm max.	Weight kg
4.053	52,5	40	30	33,0	27,0	17	5,0	15	2	24,0	32,0	7	800	0,46
4.054	62,5	42	30	37,5	30,5	20	2,5	20	3	31,0	35,5	11	900	0,53
4.055	70,1	48	35	44,0	36,0	23	2,5	22	4	45,5	51,0	14	900	0,80
4.056	77,7	54	40	48,0	36,5	23	3,0	26	4	48,0	56,8	18	800	1,00
4.057	77,7	53	40	40,0	29,0	23	3,0	26	4	48,0	56,8	18	800	0,87
4.058	88,4	59	45	57,0	44,0	30	3,5	26	3	68,0	72,0	23	750	1,62
4.059	101,2	67	50	46,0	33,0	28	3,0	30	3	73,0	82,0	27	700	1,74
4.06	107,7	71	55	54,0	39,0	31	3,0	34	5	81,0	95,0	36	650	2,27
4.061	107,7	71	60	69,0	55,0	31	4,0	34	5	81,0	95,0	36	650	2,82
4.062	123,0	80	60	72,3	56,0	37	5,0	40	5	110,0	132,0	50	550	3,89
4.063	149,0	103	60	78,5	58,5	43	5,5	50	3	151,0	192,0	71	450	6,52
