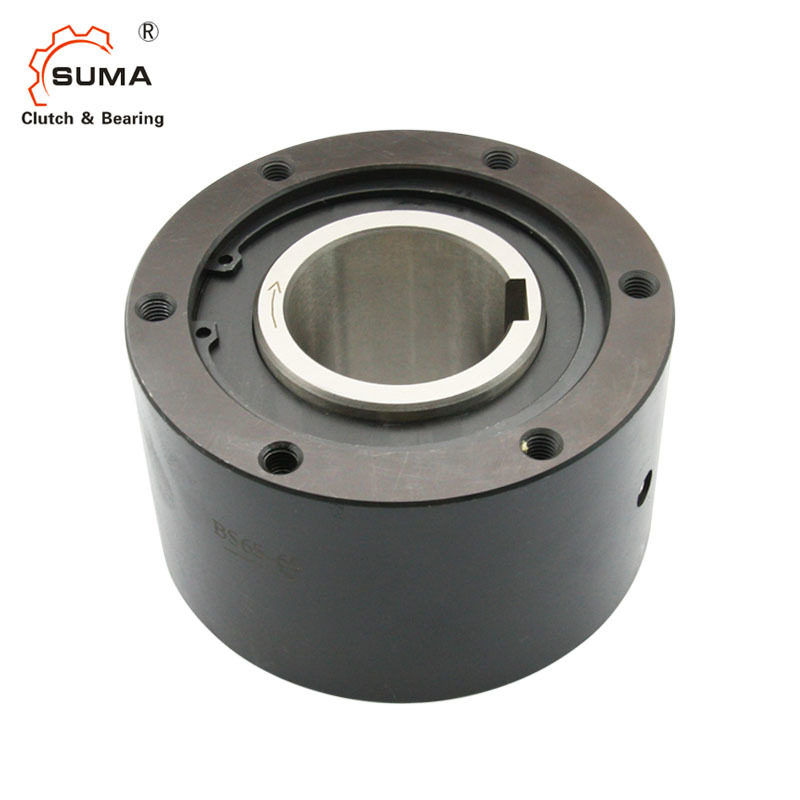

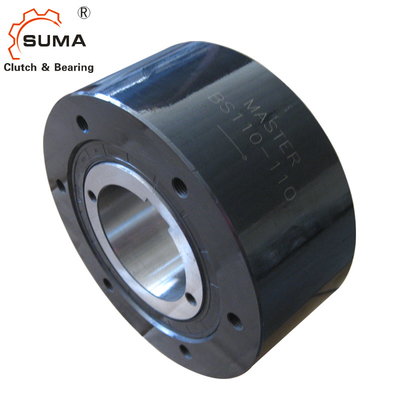

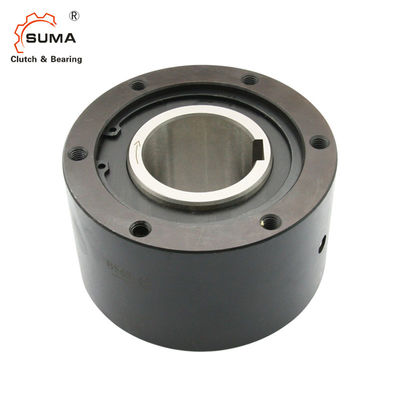

Name: BS110 One Way Clutch Bearing CAM Type Sealed for Conveyors
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: BS110
Price: 529.00 USD
Availability: InStock

Главная страница Продукция Один подшипник муфты пути

BS110 One Way Clutch Bearing CAM Type Sealed for Conveyors

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	SUMA
Номер модели:	BS110

Оплата и доставка Условия:

Количество мин заказа:	2
Цена:	$498-560

контакт

Подробное описание продукта

Тип:	САМ	Точный рейтинг:	П.
Тип уплотнений:	Запечатанный	Материал:	Сталь, GCR15
Крутящий момент:	10800 нм	Притягивающий момент:	14,7 нм
Максимальный переоборудование скорости:	250 р/мин	Внутренний диаметр расы:	115 мм
Внешний диаметр расы:	270 mm	Ширина:	110 мм
Диаметр круга высоты:	220 мм	Диаметр круга болта:	150 мм
Размер болта:	M16 × P2.0 × 6	Смазка заливчика:	-
Смазка количества:	-
Выделить:	CAM type one way clutch bearing , sealed one way clutch bearing , conveyor one way clutch bearing

BS110 One Way Clutch Bearing Backstop Clutch

Reverse Rotation Prevention for Conveyors

Product Attributes

Attribute	Value
Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Printing Shops, Construction works, Energy & Mining, Other
Type	CAM
Precision Rating	P0
Seals Type	SEALED
Material	Steel, GCr15
Product Name	BS110 One way Clutch bearing
OEM	Accept
Torque Capacity (N.m)	10800
Drag Torque (N.m)	14.7
Delivery	15 Days
Package	Wooden Box
Port	Shanghai; Ningbo

Product Description

The BS series Cam Clutches are designed for applications requiring prevention of reverse rotation in slow speed conveyor head shafts (backstopping).

Key Features

Prevents reverse rotation in conveyor systems
Available in standard (BS30 to BS135) and high-speed (BS160HS to BS450HS) models
High torque capacity up to 980,000 N.m
Sealed construction for durability
Precision engineered for reliable performance

Standard Models (BS30 to BS135)

High-Speed Models (BS160HS to BS450HS)

The BS-HS series offers higher torque and speed capabilities than conventional models.

Technical Specifications

Dimensions and capacities (all dimensions in mm):

Model	Torque Capacity (N*m)	Max. Overrunning (r/min) Inner Race	Drag Torque (N*m)	A	B	C	PCD D	E	S	H-M Size× Pitch× No.of Tapped HoleS	Grease Filler Hole (Size)	Q'ty Grease (kg)
BS30	294	350	0.58	64	90	64	80	45	13	M6 ×P1.0×4	-	-
BS50	784	300	0.98	67	125	67	110	70	16	M8 ×P1.25×4	-	-
BS65	1570	340	3.92	90	160	85	140	90	20	M10 ×P1.5×6	-	-
BS75	2450	300	5.88	90	170	85	150	100	20	M10 ×P1.5×6	-	-
BS85	5880	300	7.84	115	210	110	185	115	30	M12 ×P1.75×6	-	-
BS95	7840	250	9.8	115	230	110	200	130	30	M14 ×P2.0×6	-	-
BS110	10800	250	14.7	115	270	110	220	150	30	M16 ×P2.0×6	-	-
BS135	15700	200	19.6	135	320	130	280	180	30	M16 ×P2.0×8	-	-
BS160HS	39200	350	34.3	180	360	175	315	220	40	M20 ×P2.5×10	PT 1/4	0.23
BS200HS	61700	250	44.1	205	430	200	380	260	40	M22 ×P2.5×8	PT 1/4	0.31
BS220HS	102000	200	73.5	330	500	325	420	290	40	M20 ×P2.5×16	PT 1/4	1.3
BS250HS	147000	170	93.1	370	600	365	530	330	50	M24 ×P3.0×16	PT 1/4	1.7
BS270HS	204000	160	98	385	650	380	575	370	50	M24 ×P3.0×16	PT 1/4	2
BS300HS	294000	150	108	425	780	420	690	470	60	M30 ×P3.5×16	PT 1/4	3.6
BS350HS	392000	110	157	440	930	480	815	535	70	M36 ×P4.0×16	PT 1/4	4.1
BS425HS	735000	85	216	570	1030	580	940	635	70	M36 ×P4.0×18	PT 1/4	6.9
BS450HS	980000	80	245	570	1090	600	990	645	80	M42 ×P4.5×18	PT 1/4	7.2

Bore Keyway and Weight Details

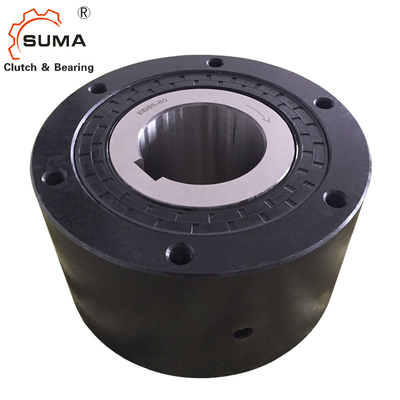

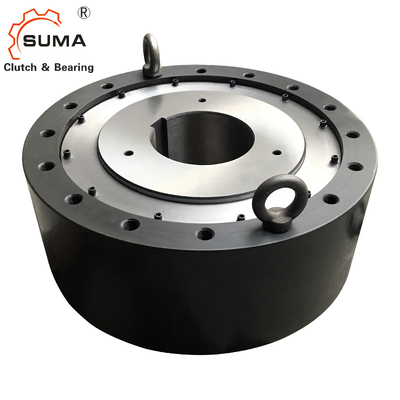

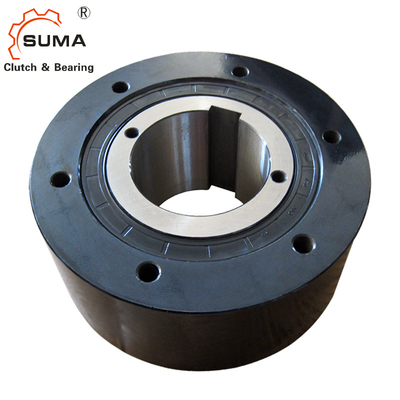

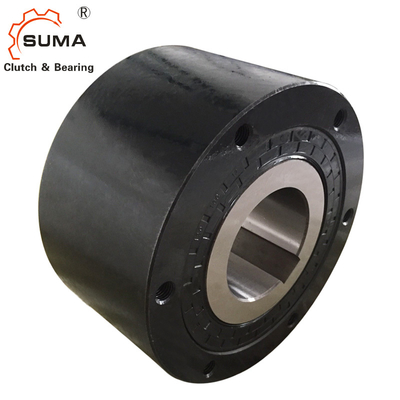

Detailed Product Images

Frequently Asked Questions

How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

We highly encourage requesting samples for quality verification.

Can you promise to deliver the goods on time?
