Name: DC 7221(5C) Sprag Type One Way Clutch Bearing DC7221B
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: DC7221 (5C)
Price: 7.00 USD
Availability: InStock

Главная страница Продукция Один подшипник муфты пути

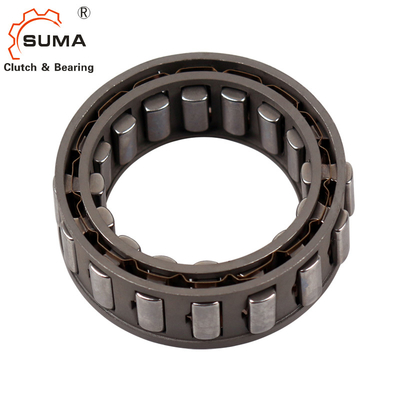

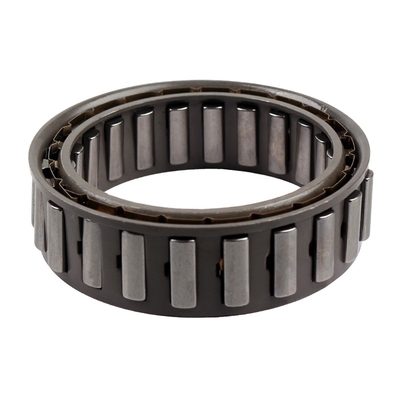

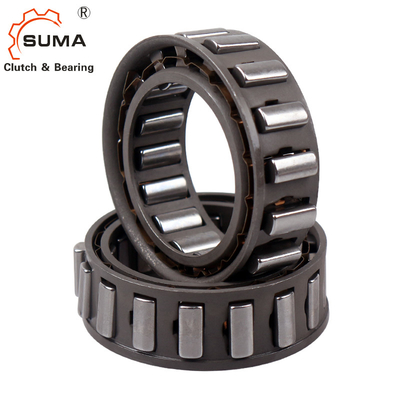

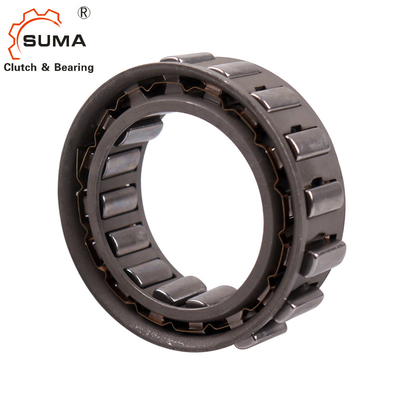

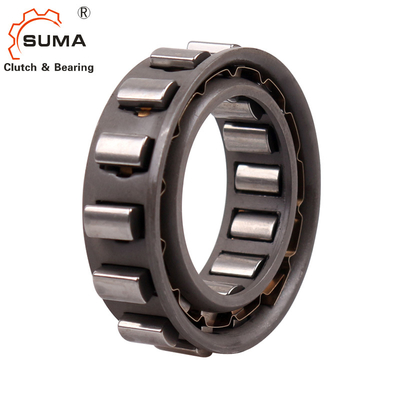

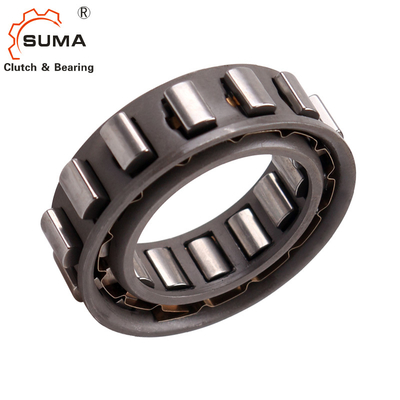

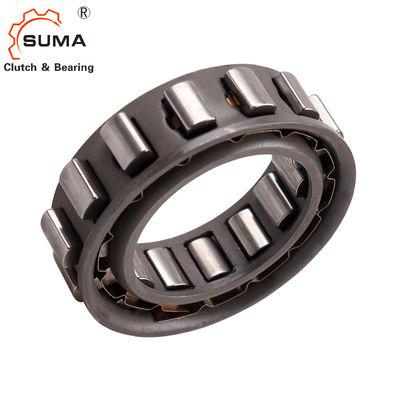

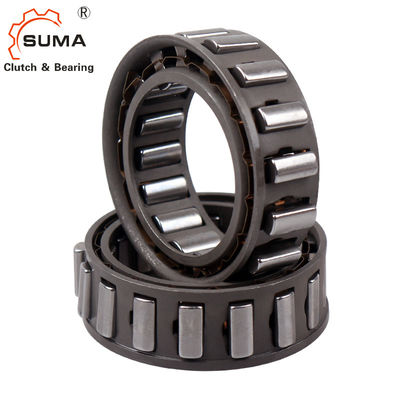

DC 7221(5C) Sprag Type One Way Clutch Bearing DC7221B

Подробная информация о продукте:

Место происхождения:	Цзянсу, Китай
Фирменное наименование:	SUMA or OEM
Номер модели:	DC7221 (5C)

Оплата и доставка Условия:

Количество мин заказа:	2
Цена:	US$7-8

контакт

Подробное описание продукта

Тип:	Подшашка	Точный рейтинг:	П.
Тип уплотнений:	Не-загерметизированный	Высота:	13,5 mm
Притягивающий момент:	540 Н.м.	Материал гонки:	GCR15
превышение скорости:	2600 мин 1	Внутренний диаметр:	72.217 мм
Внешний диаметр:	880,877 мм	Sprag Space:	8.33 мм
Минимальная ширина:	13,5 mm	Минимальный диаметр вала:	115 мм
Максимальный диаметр корпуса:	56 мм	Количество клипов:	5
Количество Sprags:	30	Масса:	0,210 кг
Выделить:	DC7221B sprag clutch bearing , one way clutch bearing DC7221 , 5C sprag type clutch bearing

DC 7221(5C) One Way Clutch Bearing with Sprag Type DC7221B

Product Specifications

Attribute	Value
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining
Type	sprag
Precision Rating	P0
Seals Type	non-sealed
Height (mm)	13.5
Drag Torque (N.m)	540
Race Material	GCr15
OEM Service	Accept
Stock	Rich
Package	Carton Box / Wooden Box
Port	Shanghai, Ningbo

Product Description

Key Features

Type DC is a sprag type freewheel cage without inner or outer races
Must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing
The DC type version-N accepts all types of lubricants currently used in power transmission equipment
Sprag space tolerance must not be exceeded for proper function
Inner and outer races must have minimum plain width without recess
Races can be made in case hardened steel shafts or housings with specific hardness requirements
Surface roughness not to exceed 22CLA
Maximum taper between races: 0.007 mm for 25 mm width

Technical Specifications

Size	Torque TKN1[Nm]	Overrunning speeds nimax2 [min-1]	Namax2 [min-1]	Øa + 0,008 - 0,005 [mm]	Øc ± 0,013 [mm]	Sprag space [mm]	emin [mm]	Ødmin [mm]	Øbmax [mm]	Number of clips	Number of sprags	Weight [kg]
DC7221(5C)	675	2600	1300	72.217	88.877	8.33	13.5	115	56	5	30	0.140
DC7221B	1279	2600	1300	72.217	88.877	8.33	21	115	56	-	30	0.185
DC7221B(5C)	1279	2600	1300	72.217	88.877	8.33	21	115	56	5	30	0.210
